| Name | 0-15LPM Oxygen Flow Meter With Chemetron/DIN/Ohmeda/ Adaptor Medical Oxygen Flow Meter |
| Gas | Medical air |
| Scale | 0-25 lpm |
| Increments | .1 lpm (starts at .1 lpm) |
| Accuracy | +-.05 lpm |
| Flush Flow | 5 lpm |
| Flow Range | 0-15L/min |
| Vase type adaptor | CAG540,CAG870,BULL NOSE |
| Wall type adaptor | Diss,Ohmeda,Chemetron,British,French,German standard |
| Price | Competitive price |
| Services | Reply To You With In 24 hours |
| Delivery time | 15-25 days |
| Wrantly | 2 years |
| OEM | OK |
| Color: | |
|---|---|
| Size: | |
| Material: | |
| Gas type: | |
| MOQ: | |
| Quantity: | |
ME4000
MEDEASE

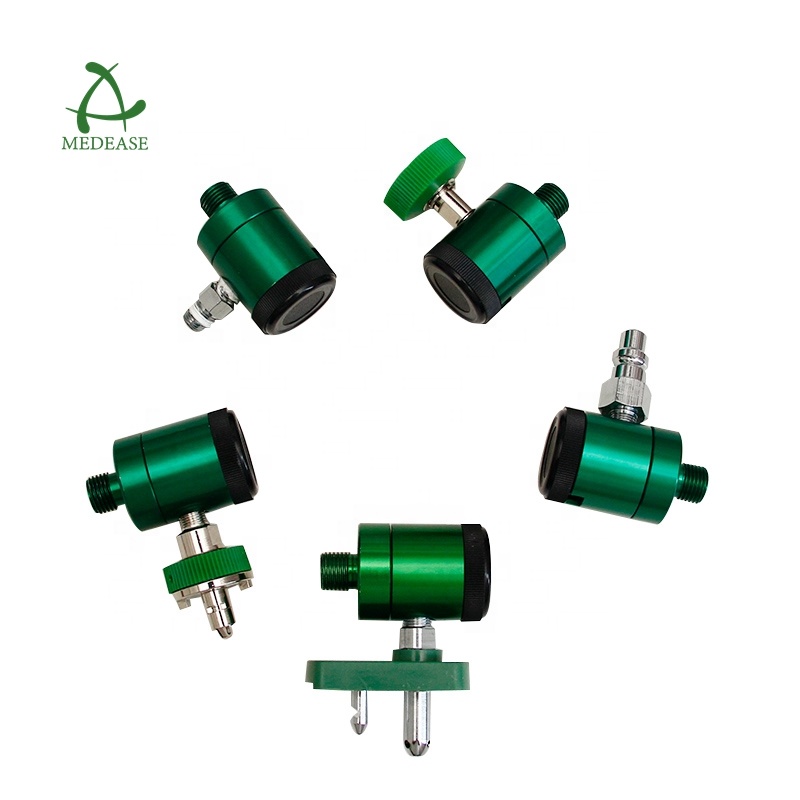

This 0-25 LPM adjustable click style flow meter uses a male 1/ 8" NPT connection. To ensure safety, reliability, and durability, this flow meter is manufactured from aluminum and brass. This flowmeter can be set to OFF, 0.25, 0.5, 1, 2, 3, 4, 6, 8, 10, 15, or 25 LPM. All flow rate indicators are labeled in fractions for easy reading. Current inventory is anodized in dark green.
lMaterial - Aluminum Body
lFixed Orifice Disk- Brass
lSeal O-Ring- Rubber
lKnob- ABS Plastic
lEncased in an anodized aluminum housing
lEasy to read window
lCalibrated - Inlet pressure 50 PSIG
lInlet Port -1/8 FNPT
lSmallest and lightest in the industry
lGas specific color-coded labeling
lOutlet Port -9/16-18 UNF (CGA 1240)
lAvailable in Oxygen in 25, 15, 8 and 4 LPM
lAvailable in Medical Air in 25 and 15 LPM
Flow Range | Oxygen | 0 - 25 LPM | 0, 1, 2, 3, 4, 6, 8, 10, 12, 15, 20, 25 |
0 - 15 LPM | 0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 15 | ||
0 - 8 LPM | 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8 | ||
0 - 4 LPM | 0, 0.03, 0.06, 0.12, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4 | ||
Medical Air | 0 - 15 LPM | 0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 15 | |
0 - 25 LPM | 0.5, 1, 2, 4, 6, 8, 10, 12, 15, 20, 25 |
