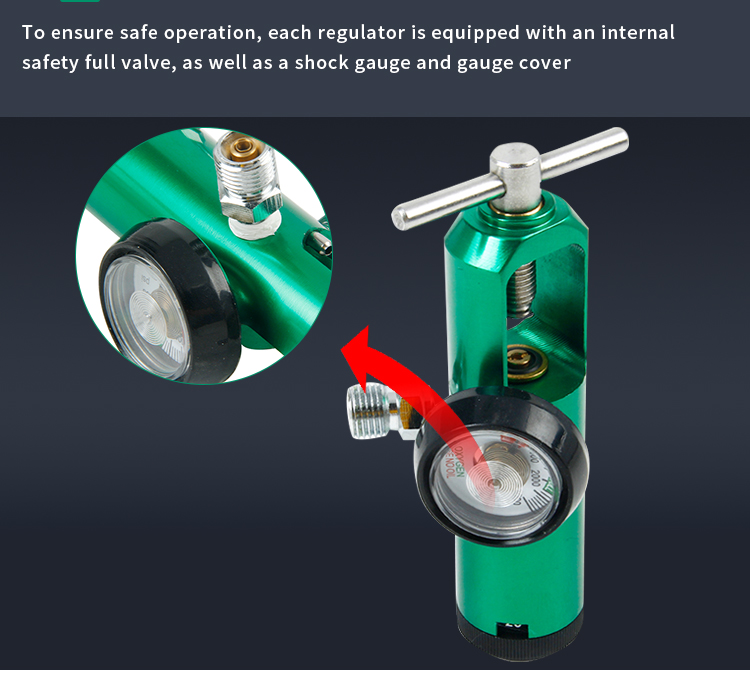

CGA870 With 2Check Vave Sliver Medical Oxygen Regulator/Pin Indexed Yoke Inlet Cylinder Click Oxygen Regulator

OXYGEN FLOW CONTROL REGULATORS

Oxygen flow control regulators are pressure reducing devices which lower oxygen pressure from a cylinder, to levels that can be safely used by the end user.

Oxygen flow control regulators are intended for the administration of oxygen to patients who need increased oxygen levels to improve their breathing conditions. In addition, some models may  be used in emergency situations. In an emergency situation, be sure to contact a physician or EMS immediately.

Set-up(CGA870 style)

1.      Inspect the cylinder following the instructions of your gas supplier. Be sure to purge the cylinder valve seat of debris.

2.      Inspect the regulator for oil grease. If these are visible, do not use the regulator.

3.      Be sure the sealing washer is in place n the inlet to the regulator.

4.      Slip the Yoke over the cylinder post and fit the pins into the holes on the cylinder valves. The pins should fit easily into the holes.

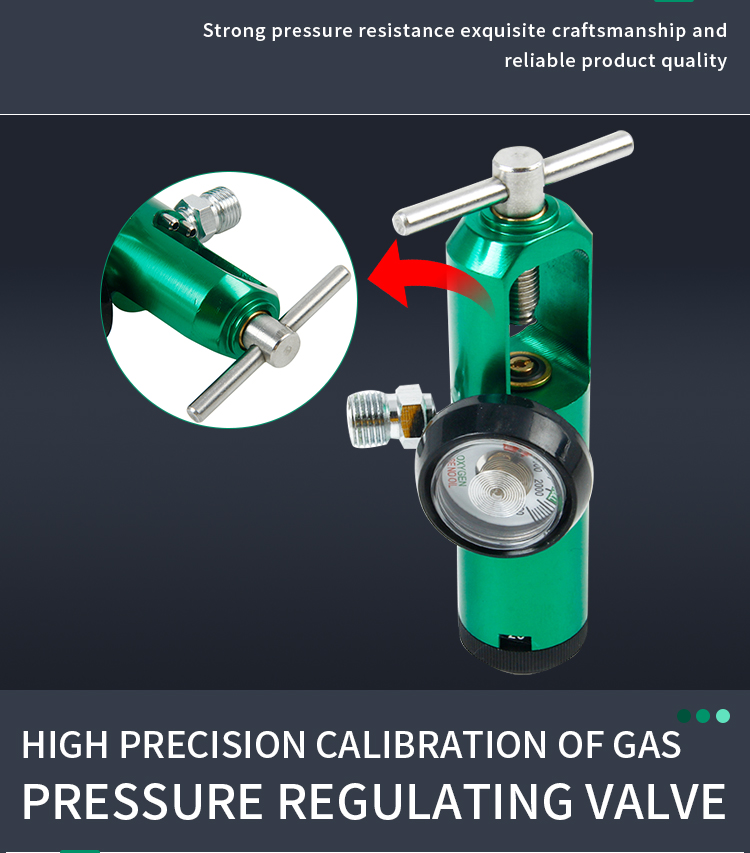

5.      Tuen the T-handle clockwise until the screw point is seated in the dimple on the cylinder valve. Be sure the regulator is tightened securely onto the cylinder.

6.      Attach the oxygen supply tubing to the outlet connection of the regulator.
