| Item Name | Medical Oxygen Regulator |
| Material | Aluminum Body with Brass Core |
| Gas Type | OXYGEN |
| Inlet Connector | ME540-A-2CV |
| Outlet Connector | Barb,Diss |
| Inlet Pressure | 0-3000PSI |
| Outlet Pressure | 50PSI |
| Flow Rate | 0-4, 0-8, 0-15,0-25 LPM |
| Flow | 0-4L/MIN,12 LEVELS ADJUSTMENT 0,1/32.1/16.1/8.1/4,1/2.3/4,1.01.5,2.0,4.0 INPUT |
| Pressure | 15MPA |
| Output Thread | 8MM PLUG |
| Diameter | 13MM OR 14MM HUMIDIFIER |
| Brand | MEDEASE |
| Color: | |
|---|---|
| Size: | |
| Material: | |
| Gas type: | |
| MOQ: | |
| Quantity: | |
ME540-A-2CV
MEDEASE

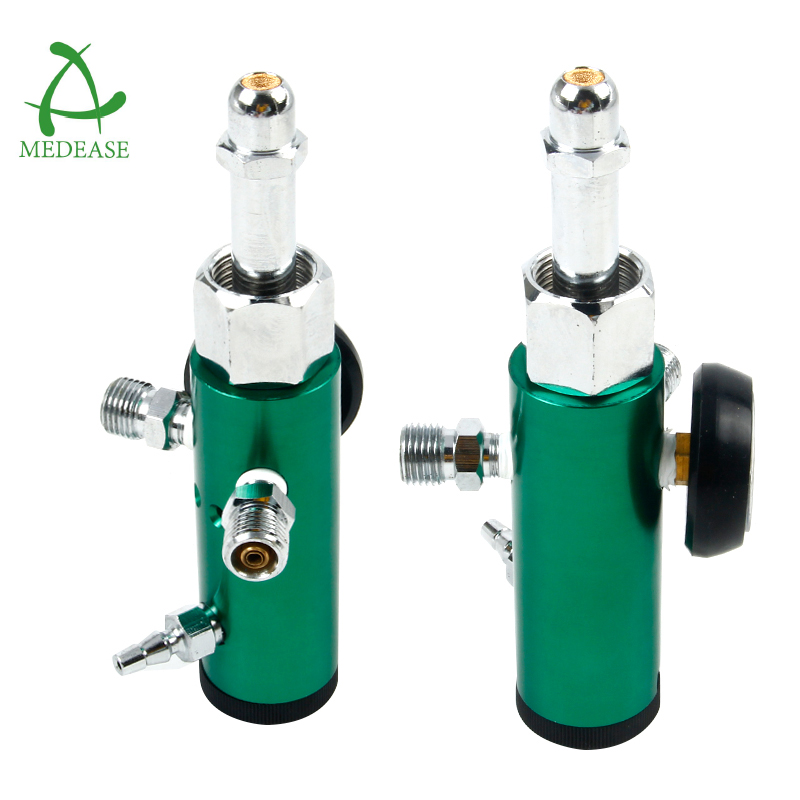

| This pin index oxygen regulator is used to control oxygen flow and pressure from a cylinder. |
| Gas type: Medical Oxygen |
| Materials: Body: Aluminium |
| Chamber: Brass |
| Input Connection: CGA540 |
| Input Pressure: ā¤151 Bar |
| Operator Control: Click Adjustment |
| The 0-4 LPM regulator can be set to 0, 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1 1/2, 2, 3, or 4 LPM. |
| The 0-8 LPM can be set to 0, 1/8, 1/2, 1, 1 1/2, 2, 2 1/2, 3, 4, 5, 6, or 8 LPM. |
| The 0-15 LPM regulator can be set to 0, 1/2, 1, 1 1/2, 2, 3, 4, 5, 6, 8, 10, or 15 LPM. |
| The 0-25 LPM regulator can be set to 0, 0.5 , 1, 2, 3, 4, 5, 6, 8, 10, 15, or 25 LPM. |
